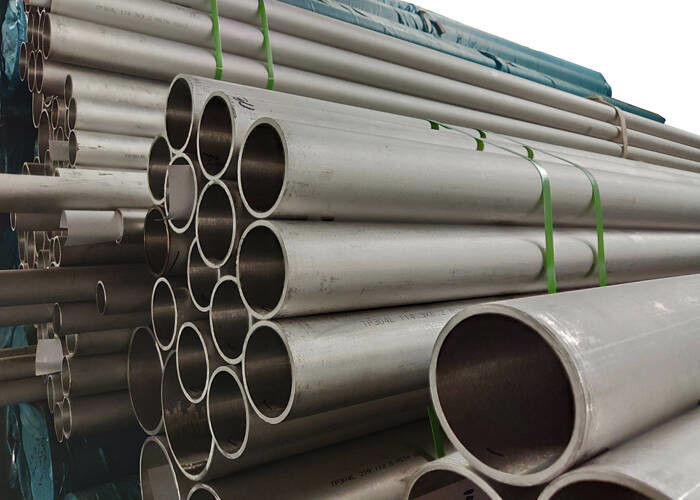

ASTM 269 Stainless Steel Seamless Pipe SS3inch SCH60 SSS 316

Name: ASTM 269 Stainless Steel Seamless Pipe SS3inch SCH60 SSS 316
Brand: Wenzhou Zheheng Steel Industry Co.,Ltd
SKU: পাইপ
Price: 2,600.00 USD
Availability: InStock

পণ্যের বিবরণ

উৎপত্তি স্থল: চীন

পরিচিতিমুলক নাম: Zheheng

সাক্ষ্যদান: ISO9001

মডেল নম্বার: পাইপ

নথি: প্রোডাক্ট ব্রোশিওর পিডিএফ

পেমেন্ট ও শিপিংয়ের শর্তাবলী

Minimum Order Quantity: 500KG per Month

মূল্য: $1000-4200/Ton

Packaging Details: We Can Negotiate，Bundle Packing

ডেলিভারি সময়: 30-45 কাজের দিন

পরিশোধের শর্ত: এল/সি, টি/টি, ডি/পি

যোগানের ক্ষমতা: 1000+

সেরা দাম পান

পণ্যের বিবরণ

পণ্য বিবরণ

বিশেষভাবে তুলে ধরা:
                                                                                                                                                                                                                                                ASTM 269 Stainless Steel Seamless Pipe, SCH60 Stainless Steel Pipe, Welded mirror Seamless Stainless Steel Pipe


সহনশীলতা:	±1%	সারফেস:	আয়না
Package:	We Can Negotiate，Bundle Packing	ওয়েল্ডিং লাইনের ধরন::	বিজোড়/ঝালাই
Other name:	Stainless steel 316 price per kg	Usage:	frame work, braces

সহনশীলতা:	±1%
সারফেস:	আয়না
Package:	We Can Negotiate，Bundle Packing
ওয়েল্ডিং লাইনের ধরন::	বিজোড়/ঝালাই
Other name:	Stainless steel 316 price per kg
Usage:	frame work, braces

ASTM 269 Stainless Steel Seamless Pipe SS3inch SCH60 SSS 316

Production description

ASTM 269 SS3inch SCH60 SSS pipe 316 stainless steel seamless pipe is an austenitic chromium nickel steel round bar containing molybdenum which provides superior corrosion resistance and increased strength at elevated temperatures when compared to 304 Stainless. Widely known as a food grade stainless or marine grade, 316 Stainless is ideally suited for corrosion resistance against a wide range of chemical and acidic corrodents, and marine environment applications. Typical uses of 316 Stainless include food production, pharmaceutical equipment, furnace parts, heat exchangers, valves and pumps, chemical equipment, and parts for marine use. Primarily offered in a lower carbon, dual grade 316/316L for increased machinability and added corrosion resistance when welded.

Mechanical Properties

Grade	Tensine strength (MPa)	Elongation (% in 50mm)	Yield strength 0.2% proof (MPa)	Hardness
				Rockwell B (HR.B)	Brinell (HB) max
304	515	40	205	92	201

Product details

Product Name	316 Seamless Stainless Steel Pipe
Standard	GB,AISI,ASTM,DIN,EN,JIS
Chemical Composition	C,Mn,Si,P, S,Cr, Ni
Machining	Turning / Milling / Planing / Drilling / Boring / Grinding / Gear Cutting / CNC Machining
Surface	mirror
Trade Terms	Price Term	FOB,CFR,CIF, EXW
	Payment Term	L/C, T/T, D/P
Package	As to clients' requirements,Wooden Cases,Bundle Packin
Delivery Time	30 DAYS
Quality Guarentee	ISO9001
Application	Chemical, Pharmaceutical & Bio-Medical, Petrochemical & Refinery, Environmental, Food Processing, Aviation, Chemical FertilizerSewage Disposal, Desalination, Waste Incineration etc.

Chemical composition

Grade	C	Si	Mn	P	S	Ni	Cr
316	≤0.08	≤1.08	≤2.08	≤3.08	≤4.08	≤5.08	≤6.08

Seamless stainless steel pipes

WALL THCKNESS FOR STAINLESS STEEL PIPE &T UBE (ASME B36.10 & B36.19)
DNmm	DNin	φmm	SCH5S	SCH10S	SCH40S	STD	Sch40	Sch60	Sch80s	XS	Sch80	Sch120	Sch140	Sch160	XXS
6	1/8	10.3		1.24	1.73	1.73	1.73		2.41	2.41	2.41
8	1/4	13.7		1.65	2.24	2.24	2.24		3.02	3.02	3.02
10	3/8	17.1		1.65	2.31	2.31	2.31		3.2	3.2	3.2
15	1/2	21.3	1.65	2.11	2.77	2.77	2.77		3.73	3.73	3.73			4.78	7.47
20	3/4	26.7	1.65	2.11	2.87	2.87	2.87		3.91	3.91	3.91			5.56	7.82
25	1	33.4	1.65	2.77	3.38	3.38	3.38		4.55	4.55	4.55			6.35	9.09
32	1 1/4	42.2	1.65	2.77	3.56	3.56	3.56		4.85	4.85	4.85			6.35	9.7
40	1 1/2	48.3	1.65	2.77	3.68	3.68	3.68		5.08	5.08	5.08			7.14	10.15
50	2	60.3	1.65	2.77	3.91	3.91	3.91		5.54	5.54	5.54			8.74	11.07
65	2 1/2	76	2.11	3.05	5.16	5.16	5.16		7.01	7.01	7.01			9.53	14.02
80	3	88.9	2.11	3.05	5.49	5.49	5.49		7.62	7.62	7.62			11.13	15.24
90	3 1/2	101.6	2.11	3.05	5.74	5.74	5.74		8.08	8.08	8.08
100	4	114.3	2.11	3.05	6.02	6.02	6.02		8.56	8.56	8.56	11.13		13.49	17.12
125	5	141.3	2.77	3.4	6.55	6.55	6.55		9.53	9.53	9.53	12.7		15.88	19.05
150	6	168.3	2.77	3.4	7.11	7.11	7.11		10.97	10.97	10.97	14.27		18.26	21.95
200	8	219.1	2.77	3.76	8.18	8.18	8.18	10.31	12.7	12.7	12.7	18.26	20.62	23.01	22.23
250	10	273	3.4	4.19	9.27	9.27	9.27	12.7	12.7	12.7	15.09	21.44	25.4	28.58	25.4
300	12	323.8	3.96	4.57	9.53	9.53	10.31	14.27	12.7	12.7	17.48	25.4	28.58	33.32	25.4
350	14	355.6	3.96	4.78		9.53	11.13	15.09		12.7	19.05	27.79	31.75	35.71
400	16	406.4	4.19	4.78		9.53	12.7	16.66		12.7	21.44	30.96	36.53	40.49
450	18	457	4.19	4.78		9.53	14.27	19.05		12.7	23.83	34.93	39.67	45.24
500	20	508	4.78	5.54		9.53	15.09	20.62		12.7	26.19	38.1	44.45	50.01
550	22	559	4.78	5.54		9.53		22.23		12.7	28.58	41.28	47.63	53.98
600	24	610	5.54	6.35		9.53	17.48	24.61		12.7	30.96	46.02	52.37	59.54
650	26	660				9.53				12.7
700	28	711				9.53				12.7
750	30	762	6.35	7.92		9.53				12.7
800	32	813				9.53	17.48			12.7
