বিশেষভাবে তুলে ধরা:
welding 2205 duplex stainless steel
, duplex stainless steel tube
উপাদান: |
S31500,S31803,S32900,S31260,S32750,S32550 |
স্ট্যান্ডার্ড: |
ASTM, AISI, DIN, EN, GB, JIS |
টাইপ: |
বিরামবিহীন |
টেকনিক: |
ঠান্ডা অঙ্কন |
উপাদান: |
W-Nr 1.4462, W-Nr 1.4417, W-Nr 1.4507 |
নাম: |
1.4462 ডুপ্লেক্স স্টিল পাইপ |
1.4462 / 1.4362 Duplex Stainless Steel Metric Weldable S32750 Professional
W-Nr 1.4462, W-Nr 1.4417,W-Nr 1.4507,W-Nr 1.4501,W-Nr 1.4362,W-Nr 1.4410, W- duplex steel pipe
zheheng steel supply to you high quality W-Nr 1.4462 duplex steel pipe, W-Nr 1.4417 duplex steel pipe,W-Nr 1.4507 duplex steel pipe,W-Nr 1.4501 duplex steel pipe,W-Nr 1.4362 duplex steel pipe,W-Nr 1.4410 duplex steel pipe, W- duplex steel pipe, we are aslo W-Nr 1.4462 duplex steel pipe manufacturer , W-Nr 1.4417 duplex steel pipe exporter,W-Nr 1.4507 duplex steel pipe producer,W-Nr 1.4501 duplex steel pipe stockholder,W-Nr 1.4362 duplex steel pipe supplier,W-Nr 1.4410, W- duplex steel pipe
Duplex steel pipes general description:
1. Surface Pickling, annealing, polishing, bright, sand blast, hair line, etc.
2. Price Term Ex-work, FOB, CFR, CIF, or as required.
3. Payment Term T/T, L/C, Western Union.
4. MOQ 500kg
5. Delivery Time Prompt delivery or according to order's quantity.
6. Package
Export standard package: bundled wooden box, suit for all kinds of transport,or be required.
Duplex steel pipe details description:
| 1. |
Item |
s steel pipe
|
| 2. |
Material |
W-Nr 1.4417,W-Nr 1.4507,W-Nr 1.4501,W-Nr 1.4362,W-Nr 1.4410,
W-Nr 1.4460, 2205, 2507, 2304,etc.
|
| 3. |
Specifications |
Wall thickness |
1.0-150mm(SCH10S-XXS) |
| Outside diameter |
3.0-2500mm(1/8"-100") |
| Length |
6m,5.8m,8m,11.8m,12m or as required. |
| |
|
|
Duplex steel pipe chemical composition:
| Steel Grade |
C≤ |
Mn≤ |
Si≤ |
S≤ |
P≤ |
Cr |
Ni |
Mo |
Cu≤ |
N |
|
S32750((2507)
00Cr22Ni7Mo4N
|
0.03 |
1.20 |
0.80 |
0.020 |
0.035 |
24.0/
26.0
|
6.0/
8.0
|
3.0/
5.0
|
0.50 |
0.24/
0.32
|
|
S31803(2205)
00Cr22Ni5Mo3N
|
0.03 |
2.00 |
1.0 |
0.02 |
0.030 |
21.0/
23.0
|
4.50/
6.50
|
2.50/
3.50
|
|
0.08/
0.20
|
|
S31500(3RE60)
00Cr18Ni5Mo3Si2
|
0.03 |
1.2/
2.00
|
1. 4/
2.00
|
0.030 |
0.030 |
18.0/
19.0
|
4.25/
5.25
|
2.50/
2.00
|
|
0.05/
0.10
|
| Steel Grade |
Heat Treatment℃ |
Ab(MPa)≥ |
As(MPa)≥ |
EL≥ |
HB |
HRC |
|
S32750(2507)
00Cr22Ni5Mo3N
|
1025-1125 |
800 |
550 |
15 |
310 |
32 |
|
S31803(2205)
00Cr22Ni5Mo3N
|
1020-1100 |
620 |
450 |
25 |
290 |
30.5 |
|
S31500(3RE60)
00Cr18Ni5Mo3Si2
|
980-1040 |
630 |
440 |
30 |
290 |
30.5
|
Product Analysis
1 An analysis of either one billet or one length of flat-rolled stock or one tube shall be made from each heat. The chemical composition thus determined shall conform to the
requirements specified.
2 A product analysis tolerance (see the annex table on Chemical Requirements (Product Analysis Tolerances) in SpecificationA 480/A 480M) shall apply. The product analysis
tolerance is not applicable to the carbon content for material with a specified maximum carbon of 0.04 % or less.
3 If the original test for product analysis fails, retests of two additional billets, lengths of flat-rolled stock, or tubes shall be made. Both retests for the elements in question shall meet the requirements of this specification; otherwise, all remaining
material in the heat shall be rejected or, at the option of the producer, each billet or tube may be individually tested for acceptance. Billets, lengths of flat-rolled stock, or tubes that do not meet the requirements of this specification shall be rejected.

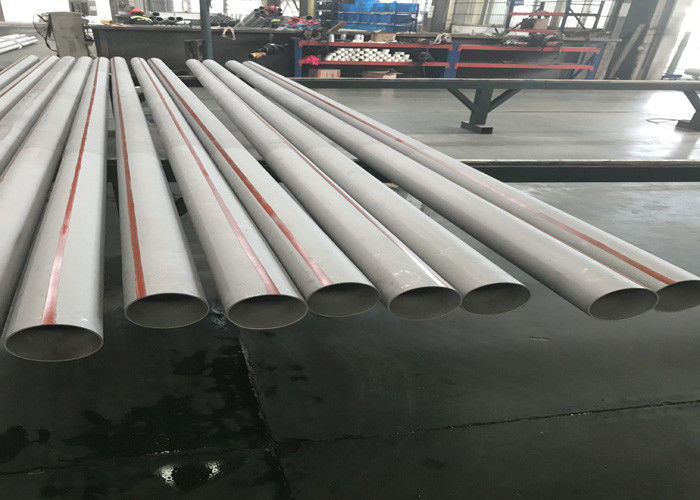

Product show:
